PRODUCT RECORD
SMUT20

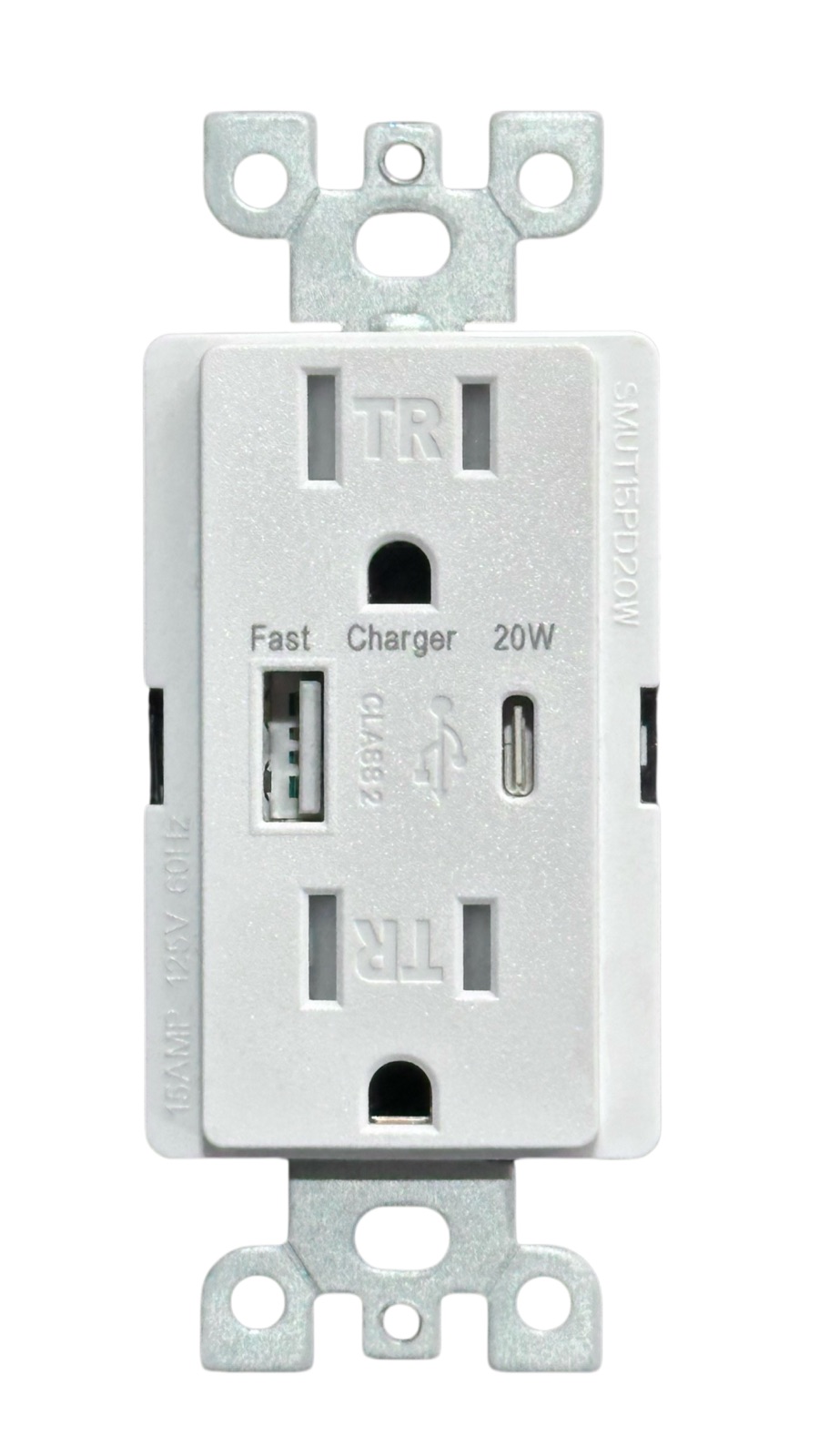

20A Slim USB Outlet
USB Outlet 20 Amp, 125 Volt, Tamper-Resistant Outlet with Slim Design, 24W (4.8 Amps)/PD20W/PD30W(customizable) Type-A/C USB In Wall Fast Charger, Side Wired & Back Wired, screws and Grounding clip included
- Rated current
- 20A
- Rated voltage
- 125V AC · 60Hz
- Product series
- Slim USB Outlet
- Model
- SMUT20
Key features
Back & side wiringTamper-resistant configurationUSB charging configurationGrounding clip included
TECHNICAL DATA
Specifications
Review the available data for this exact product record.
Environmental specifications
- Flammability
- V-0
- Operating Temperature
- Maximum Continuous 40°C, Minimum -10°C (w/o impact)无影响情况下
Material specifications
- Body Material
- Polycarbonate
- Clamps
- Copper alloy
- Grounding Contact
- Copper alloy
- Grounding Screw
- Galvanized steel
- Terminal Accom.
- 12-14 AWG
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
- Terminal Screws
- Galvanized steel
- Yoke
- Galvanized plated steel
Mechanical specifications
- NEMA
- 5-15R/5-20R
- Pole
- 2
- Wire
- 3
- Screw Terminal Torque
- 14-18 in-lbs
- Tamper Resistant
- Yes/No
- Weather Resistant
- Yes/No
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
- Termination
- Back & Side
Standards & certifications
- Standards
- UL 498,CSA C22.2 No.42
- Certifications
- ETL(File 5023317)
PRODUCT BENEFITS
Benefits
Practical benefits summarized from the supplied workbook and the confirmed product data for this model.
Matched charging output
24W output identifies the charging class clearly for model selection and device planning.
Installation flexibility
Back and side wiring provide alternatives for different box layouts and conductor-routing needs.
Tamper-resistant access
Internal shutters help limit unintended access to energized contacts in everyday installations.
