Automatic protection check
The documented self-test function periodically checks the GFCI protection mechanism and supports routine status review.
PRODUCT RECORD

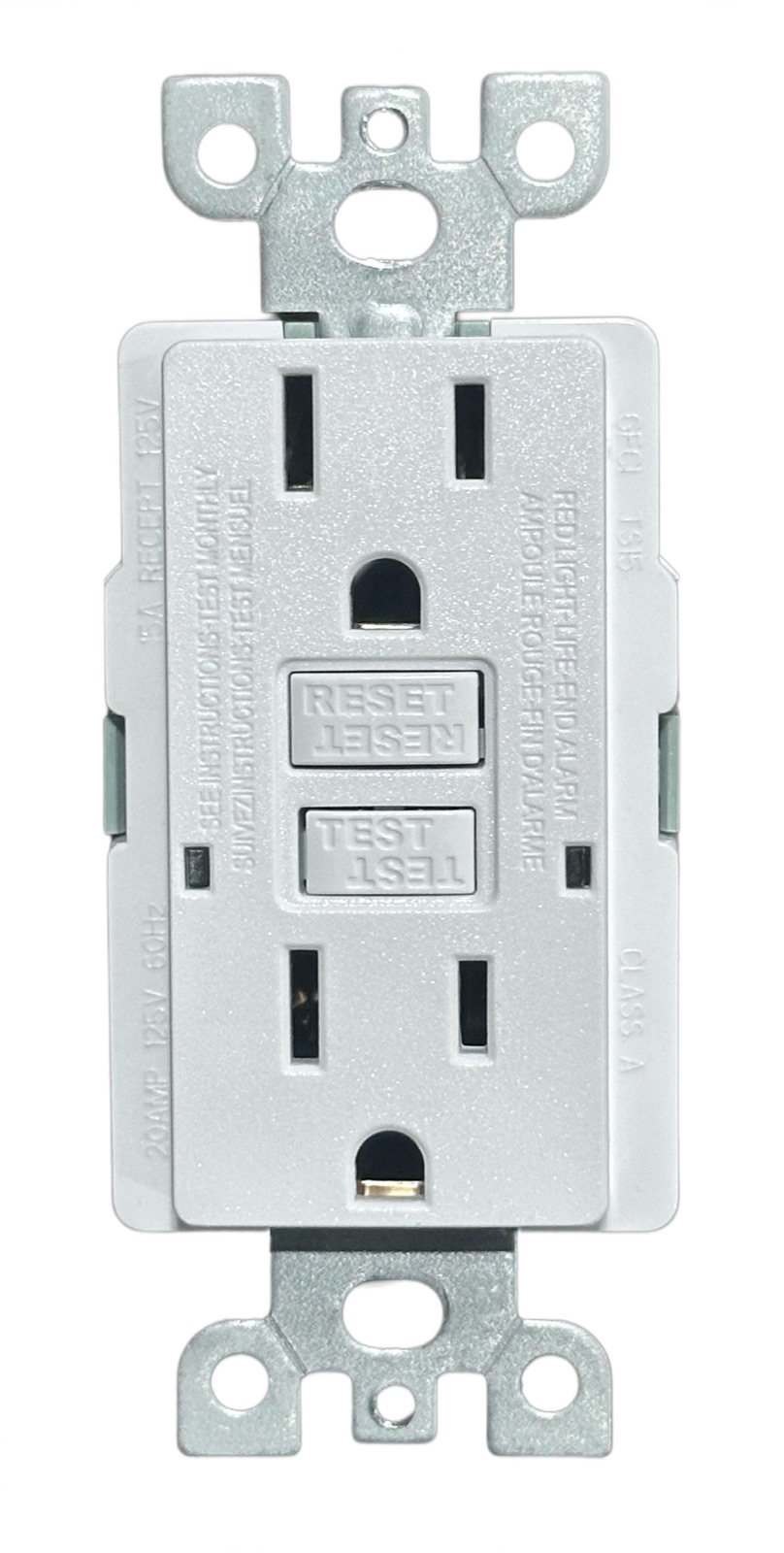

TS20
20A Dual-LED Regular GFCI
GFCI Outlet 20 Amp, 125 Volt, Self-Test GFCI with Dual LED Indicator, back and side wired, screws and Grounding clip included
- Rated current
- 20A
- Rated voltage
- 125V AC · 60Hz
- Product series
- Dual-LED Regular GFCI
- Model
- TS20
Key features
Self-test GFCIDual LED indicatorsBack & side wiringGrounding clip included
TECHNICAL DATA
Specifications
Review the available data for this exact product record.
Environmental specifications
- Flammability
- UL94 V-0
- Operating Temperature
- -35°C to 66°C
Material specifications
- Body Material
- Polycarbonate
- Clamps
- Copper alloy
- Grounding Contact
- Copper alloy
- Grounding Screw
- Galvanized steel
- Terminal Accom.
- 12-14 AWG
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
- Terminal Screws
- Galvanized steel
- Yoke
- Galvanized plated steel
Mechanical specifications
- Feature
- Self-Test
- NEMA
- 5-15R/5-20R
- Pole
- 2
- Wire
- 3
- Screw Terminal Torque
- 14-18 in-lbs
- Tamper Resistant
- Yes/No
- Weather Resistant
- Yes/No
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
- Termination
- Back & Side
- Trip Level
- Class A, 5mA plus or minus 1mA
Standards & certifications
- Standards
- UL943,CSA C22.2 No. 144.1
- Certifications
- UL(File E473989)
PRODUCT BENEFITS
Benefits
Practical benefits summarized from the supplied workbook and the confirmed product data for this model.
Visible status feedback
Dual LED indicators provide a direct visual reference for product status.
Installation flexibility
Back and side wiring provide alternatives for different box layouts and conductor-routing needs.
Included grounding hardware
The supplied model description includes a grounding clip with the product configuration.
